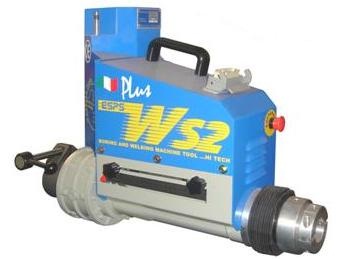

WS 2 Plus
WS2 Plus from Ø 52 mm to Ø 450 mm
Click here for PDF Specification Sheet
| IN LINE BORING ALSO IN BLIND HOLES | FROM Ø 52 MM TO MORE THAN Ø 450 MM |
| INTERNAL WELDING ALSO IN BLIND HOLES | FROM Ø 25 MM TO MORE THAN Ø 450 MM |
| EXTERNAL WELDING | FROM Ø 20 MM TO MORE THAN Ø 450 MM |
| TAPPING (WITH MALE) | FROM Ø 8 MM TO A MAXIMUM OF Ø 45 MM |
| DRILLING (WITH SPIRAL BIT) | FROM Ø 5 MM TO A MAXIMUM OF Ø 45 MM |
EQUIPPED WITH THE FOLLOWING STANDARD KIT:
N° 1 DRIVE UNIT
N° 1 CONTROL PANEL
N° 1 CABLE FOR CONTROL PANEL
N° 1 CONTROL PANEL HOLDER
N° 3 CONNECTABLE MAIN TOOL HOLDERS ø 50 mm Lgth. 1000mm +
1000mm + 860 mm: Tot. Usable lgth. 2660 mm
N° 4 BEARING CARRIERS
N° 24 BRACKETS FOR ADJUSTING DIAMETERS (N° 12 X 50 MM, N° 6 X
100 MM, N° 6 X 230 MM)
N° 1 CENTERING KIT (2 RINGS – 6 BOSSES – 6 SCREWS M10x60 mm)
N° 6 THREADED BARS M10 X 250 mm FOR CENTERING KIT,
N° 5 CARBIDE INSERTS
N° 1 TOOL HOLDER S10C x 50 mm (COMPLETE WITH WRENCH AND
TORX SCREW)
N° 1 TOOL HOLDER S12C x 80 mm (COMPLETE WITH WRENCH AND
TORX SCREW)
N° 5 TOOL-HOLDER EXTENSIONS (Ø 90 MM + Ø 150 MM + Ø 230 MM
+ 2 KNUX TYPE EXTENSIONS LGTH 100 MM + 150 MM),
N° 1 SMALL HOOK ø 35mm (device for regulating cutting depth of tool
holder)
N° 1 MICROSPAND (MODULAR DEVICE USED FOR INTERNAL
MEASUREMENTS)
N° 3 MICROSPAND EXTENSIONS (n° 1) 100 MM + (N° 2 ) 50 MM
N° 1 COMPARATOR 1/100
N° 1 COMPARATOR EXTENSION
N° 2 COMPARATOR HOLDER 8/8 – 10/8
N° 1 WELDING TORCH CABLE WITH EUR-FITTING,
N° 1 TELESCOPIC WELDING TORCH SHAFT Ø 40 MM TOTAL LGTH.
1500 MM
N° 2 ADAPTING BUSHINGS FOR TORCH SHAFT LGTH 90 – LGTH. 150
N° 4 TORCH-HEADS FOR INTERNAL OVERLAY WELDING C/W
WELDING WIRE NOZZLES AND GAS DIFFUSER (B 125 MM + C 90
MM + G 180 MM + M 70 MM),
N° 1 TORCH-HEAD FOR EXTERNAL OVERLAY WELDING C/W
WELDING WIRE NOZZLES AND GAS DIFFUSER (A 320 MM)
N° 3 TORCH-HEADS EXTENSIONS (D 55 mm + E 45 mm + H 135 mm)
N° 1 LATHED WELDING WIRE NOZZLE Ø 0.8
N° 2 SHORT WELDING WIRE NOZZLES ø 0,8 mm – ø 1 mm,
N° 2 LONG WELDING WIRE NOZZLES ø 0,8 mm – ø 1 mm,
WRENCHES
OPERATION MANUAL
